The Setup

There are several options, from the cheapest and most accessible to a real arcade cabinet.

For Newbies

The most accessible ways to start playing and learning the game.

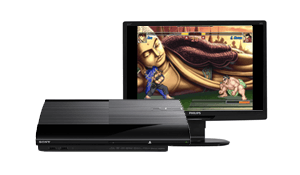

Modern console port + LCD

$$

80% arcade perfect

Very accessible and simple to set up. Some console versions include online play.

Ports can have input lag and gameplay inaccuracies; LCD displays may add more lag.

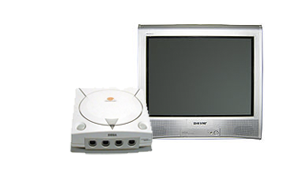

Dreamcast version + CRT

$$

85% arcade perfect

The most faithful console port of the arcade game.

Quality sticks are rare, and controller adapters can add a little lag.

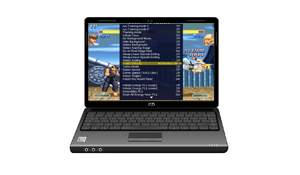

MAME emulator

$$

85% arcade perfect

The de facto setup for using Fightcade and the most accessible way to play the arcade version.

Operating system, emulator, USB controller, and LCD choices can add input lag.

For Tournaments

Arcade hardware setups suitable for competitive events and major tournaments.

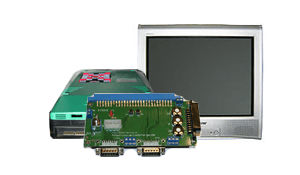

Generic supergun + CPS2 + CRT

$$$

90% arcade perfect

DB-15 arcade sticks can be connected without controller lag.

USB-to-DB-15 adapters add a small amount of lag.

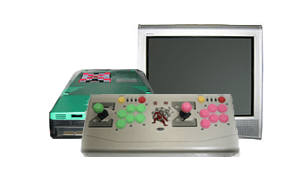

Japanese JAMMA supergun + CPS2 + CRT

$$$$

95% arcade perfect

Integrated arcade controls eliminate USB controller lag.

These units are rare and expensive.

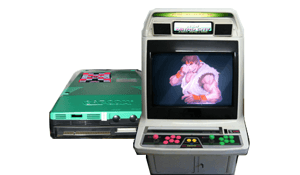

Arcade cabinet + CPS2

$$$$

100% arcade perfect

The original tournament experience; around 90% of major tournaments still use arcade cabinets.

Requires the most space, maintenance, and money.

Not Recommended Setups

These approaches compromise preservation or use hardware that is not well suited to competitive play.

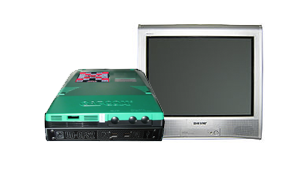

Consolized CPS2 + CRT

$$$

90% arcade perfect

Original UD-CPS2 and Wallgrants builds irreversibly modify CPS2 hardware, which is harmful to long-term preservation.

Photo coming soon

LCD custom cabinet

$$$

Accuracy varies

Arcade1Up and similar cabinets use non-optimal hardware for the controls, display, and CPU, making them a poor fit for accurate competitive play.

Lag can affect execution and precise combos, but its biggest impact is on reactions: whiff punishing, anti-airing, and walking into range to bait and punish attacks.

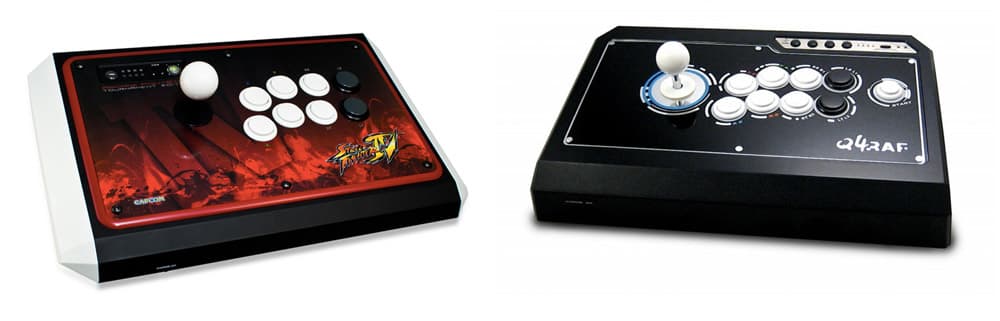

Most modern arcade sticks copy Japanese cabinet controls. A used, easily moddable stick is often the best value. Two enduring examples are the Mad Catz Tournament Edition and Qanba Q4RAF.

An arcade stick is encouraged. Its main advantage is compatibility with cabinet tournaments and greater cross-compatibility across communities in Europe and Japan.

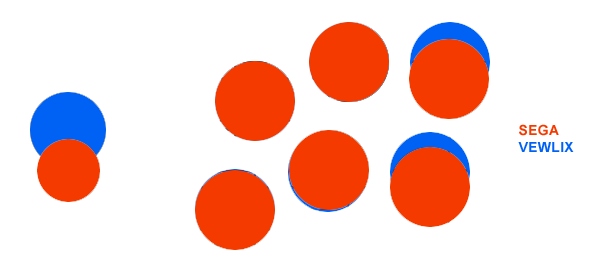

Most sticks use the modern Vewlix layout, while many ST/2X players prefer the older Sega layout. The difference is small, and moving between them is generally easy.

No. ST/2X uses six attack buttons. You can ignore the extras or cover them with button plugs.

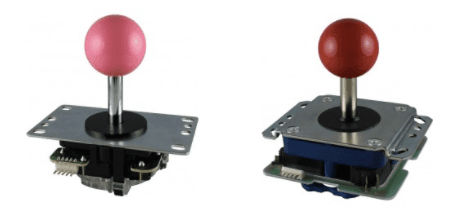

Modern Vewlix-style sticks commonly use a Sanwa JLF with Sanwa buttons. Some ST/2X players prefer the traditional Seimitsu LS-32, which has a shorter throw, stiffer spring, and smaller neutral zone.

For fighting games the difference is modest, especially when both are maintained well. Seimitsu parts are widely available, but check compatibility with your enclosure first.

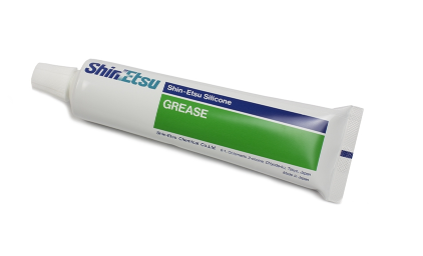

Use silicone-based grease—never organic grease, which can corrode metal and damage plastic. Molykote 44 is suitable. Traditional Japanese choices are Shin-Etsu G-40M for Sanwa and G-501 for Seimitsu.

We cannot provide copyrighted ROMs. If you legally dump your own boards, the commonly expected archive names are ssf2.zip, ssf2t.zip, and ssf2xj.zip. ROM sets must match the emulator version.

Input latency depends on the emulator version, video synchronization, display, controller, and operating system. Start with current MAME defaults, avoid unnecessary video processing, and test changes rather than assuming one universal configuration.

Fightcade includes a training mode. Community MAME/Lua training tools also provide features such as infinite health, input display, save states, hitboxes, and dummy recording. Use a version compatible with your MAME build and legally obtained ROM set. Dreamcast and HD Remix include built-in training modes as well.

Fightcade is the standard online platform. Create an account, install the client, configure your controls and legal ROM files, then join the Super Street Fighter II X room to spectate or challenge players.

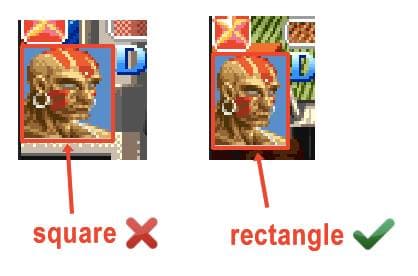

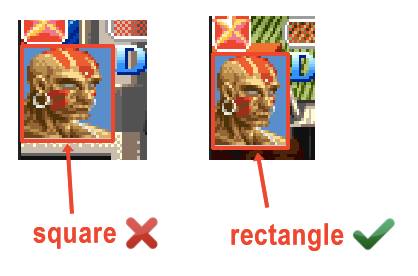

Use the original 4:3 display shape rather than stretching the game to widescreen. Choose the correct aspect-ratio option in Fightcade’s video settings; fullscreen resolution can match your display while preserving 4:3.

A supergun supplies power to an arcade board and converts its JAMMA video, audio, and controller connections into outputs suitable for a television, speakers, and external arcade sticks. CPS2 games still require a compatible A-board and B-board.

Yes, but it requires modding and is only useful when your supergun accepts DB-15. A solderless DB-15 connection is the easiest approach. Keeping USB support usually requires joining the internal signals or placing the controller PCB in an external project box.

A 4:3 CRT that accepts the supergun’s signal is the traditional low-latency choice. Consumer Sony Trinitron/WEGA televisions and professional video monitors can work well. Modern displays should be tested for input lag and may need a quality scaler.

For composite or S-Video output, connect the supergun to a compatible USB capture device. For a cleaner digital capture, add a low-latency scaler between the analog source and an HDMI capture card.

Cabinets require the video signal to be safely split or converted from the JAMMA connection. Purpose-built JAMMA-to-SCART or capture interfaces are preferable to improvised wiring.
